110-ARF-C40

DN40CF Quartz VP, AR Coated 193nm

$1,165.00 ex. VAT

Delivery time: on request

EUR
  • EUR
  • USD
  • GBP

Product description

DN40CF Fused Silica viewing window, Excimer quality

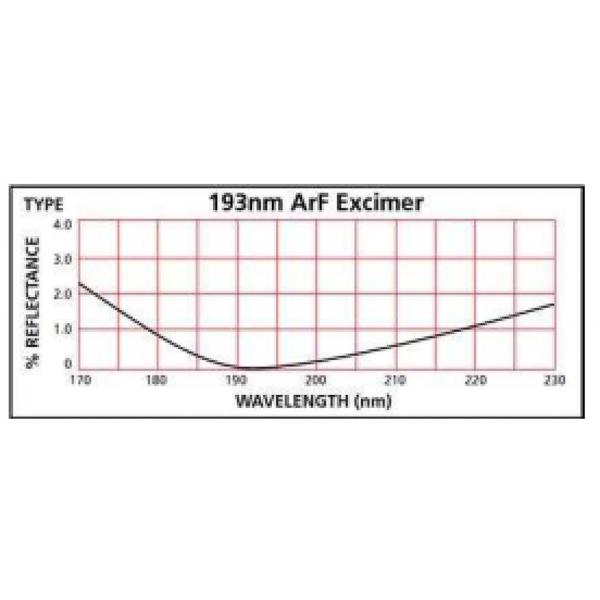

With single-line coating at 193nm
viewing diameter 35mm
Parallelism < 10 arc sec
Flatness lambda/4 @632nm
Scratch/dig 20/10
Homogeneity: A
Max. laser power 1J/cm² for 10ns pulses

Additional information

Vacuum Suitability

Flange Type

Flange Material

Flange Style

Min. Operating Temperature (°C)

Max. Operating Temperature (°C)

Part Type

Viewport Diameter (mm)

Viewport Material

Coating

Transmitted Wavefront Distortion (TWD)

Polish

Anti-Reflex Coating Wavelength

AR Coating Reflectance

Parallelism

Inclusions

Homogeneity

Laser Damage Threshold

AR Coated View Diameter (mm)
